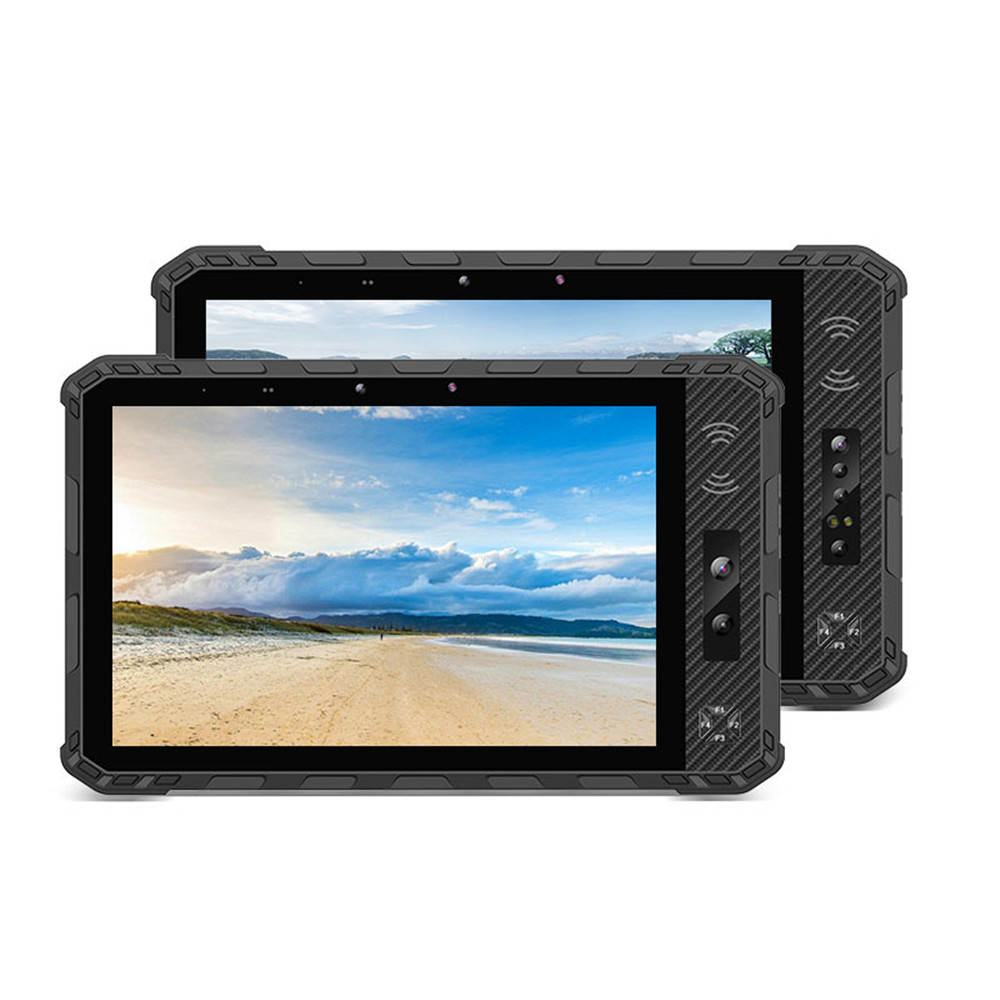

10.1” Android Touch Rugged Tablet
- 10.1 inch Rugged tablet, 16:10display
- Processor：MT6877, 8octa
- RAM:8G
- Storage:256 SSD Storage
- OS:Android 11
- Product color: Black
| Product Appearance | |||
| Type | Details | Standard Configuration | Optional configuration |
| Product Form | Product Form | rugged tablet | NA |
| Dimension | 291.4*178.8*17mm | NA | |
| Weight | 980g | NA | |
| Product Color | black | NA | |
| LCD | Screen Size | 10.1 inch 16:10 | NA |
| Resolution | 1920*1200 | NA | |
| Brightness | 400Nit | ||
| TP | Touch panel | 10 touch capacitive screen, Corning gorilla glass hardness above 7H, scratch proof，Wet hands and gloves are supported | NA |
| Camera | Front | 5MP | Optional：8mp+20mp |
| Rear | 13MP | ||

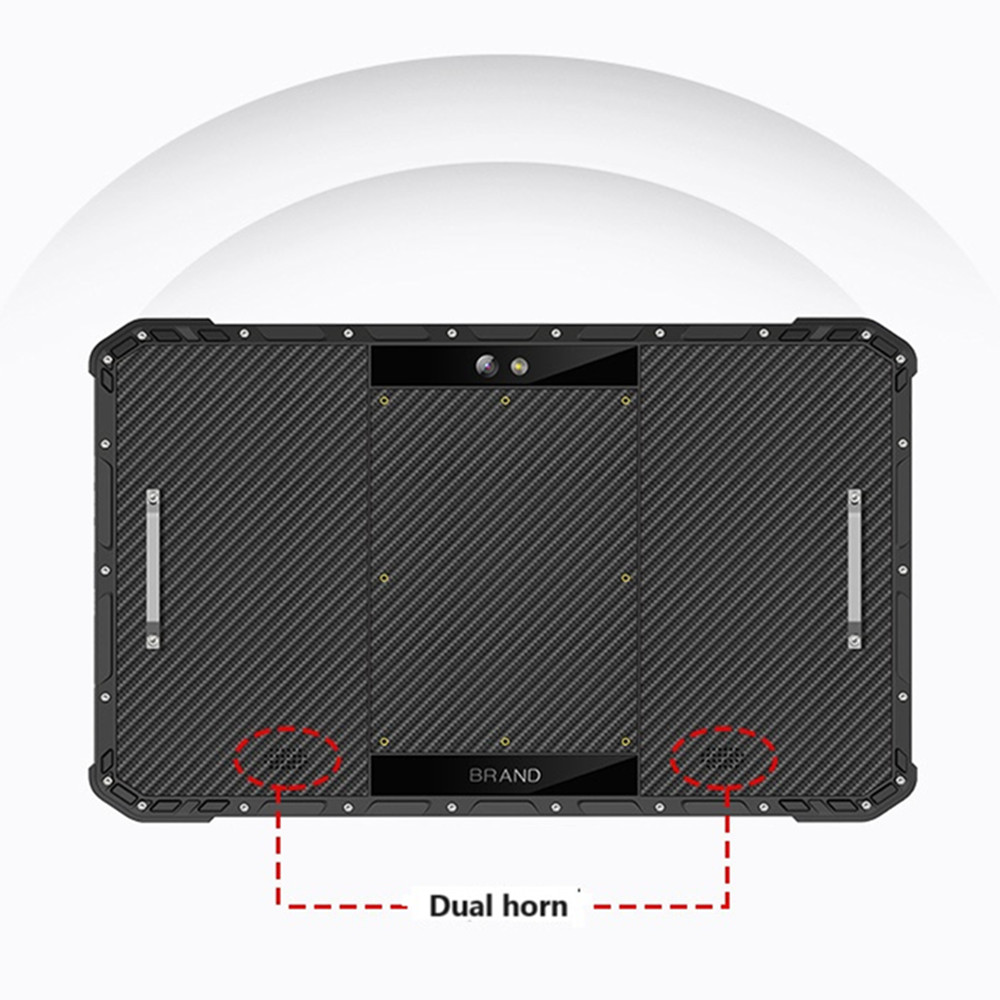

| Speaker | Built-in | Built-in 8 Ω/1W waterproof speaker X 2 | NA |
| Microphone | Built-in | High sensitivity: -32± 2D ×1 | NA |
| Key | Power,、V+、V-、PTT,、F1、F2、F3、F4 | NA | |
| Battery(tablet) | Type | Built-in pure cobalt battery | NA |
| Capacity | 3.8V/10000mAh | NA | |
| Endurance | 12H (70% volume, 70% lumen brightness, 1080 HD video) | NA | |
| System Hardware Configuration | |||
| Type | Details | Descriptions | Optional configuration |
| CPU | Type | MT6877,8octa | NA |
| Speed | 2.4GHz | NA | |
| GPU | Type | Arm Mali-G68 MC4 | NA |
| RAM | LPDDR4 | 8GB | |
| ROM | Emmc | 256GB | |
| G_sensor | Built-in | support | NA |
| Light sensor | Built-in | support | NA |
| geomagnetic sensor | Built-in | support | NA |
| gyroscope | Built-in | support | NA |
| Internet Connections | |||
| Type | Details | Descriptions | Optional configuration |
| WIFI | WIFI module | Wi-Fi 6（a/b/g/n/ac/ax） | NA |
| Bluetooth | Built-in | BT5.2 (BLE) | NA |
| 3G、4G、5G | Built-in | GSM;850/900/1800/1900 WCDMA;B1/2/5/8 LTE-FDD;B1/3/5/7/8/20 LTE-TDD;B34/38/39/40/41 5G;N1/3//8/20/28/41/77/78/79 |
NA |
| GNSS | Built-in | Beidou+GPS+glonass | NA |
| NFC | Built-in | NXP NFC 13.56MHz support ISO/IEC 下14443A/14443B/15693/18092/mifare protocol，identification distance ：2-4cm | NA |
| Data collection | |||
| Type | Details | Descriptions | Optional configuration |

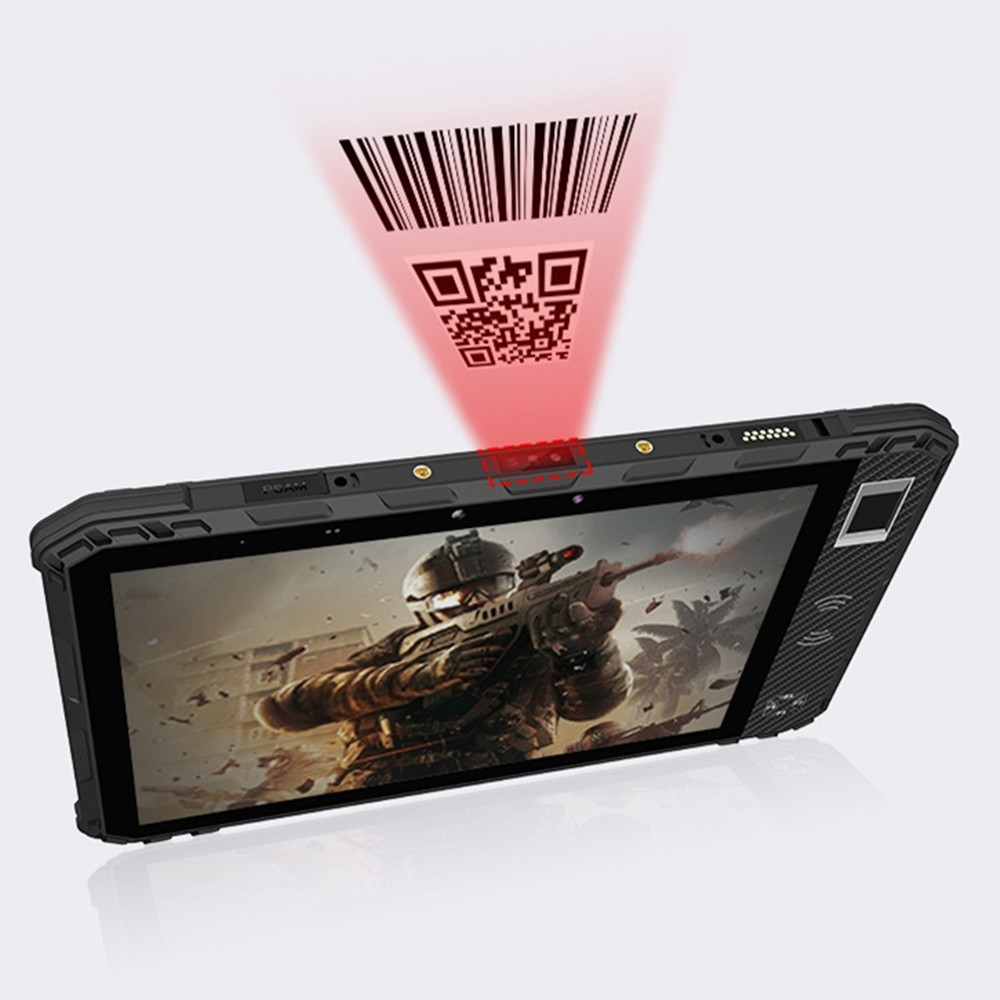

| Two-dimensional code scanning | Built-in | Optical resolution:5mil Scan speed:50 times/s Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse，Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
|
| I/O Ports | |||
| Type | Details | Descriptions | Optional configuration |
| TF Card | Extending external storage | TF x1 max：512G | NA |
| SIM Card | SIM port | SIM x1 | Optional：SIM×2 |
| USB port | Extending external storage and data exchange | USB2.0*2（ Type-A*1、Type-C*1） | NA |
| Earphone Jack | audio output | ∮3.5mm standard earphone jack x1 | NA |
| DC jack | power | DC 5V 3A ∮3.5mm DC jack x1 | With overvoltage protection, maximum protective voltage is DC24V |
| RJ45接口 | Type-A switch | 10/100Mx1 | NA |
| Standard Accessories | |||
| Type | Details | Descriptions | Optional configuration |
| Type-C cable | Type-C cable | *1 | NA |
| Operating instruction | Operating instruction | *1 | NA |
| wrist strap | wrist strap | *1 | NA |
| Adapter | Standard | AC100V to 240V, 50Hz or 60Hz output DC 5V/3A | Optional:Chinese, American, European and Australian regulations |
| Software Configuration | |||
| Type | Details | Descriptions | Optional configuration |
| Operation System | Operation System Version |
Android:12 | |
| Type | Details | Descriptions | Optional configuration |
| Certificates System | IP68 | certified | NA |
| Drop certification | certified | NA | |
| ROSH | certified | NA | |
| CE \FCC | Meet the standard, not yet certified | NA | |
| MIL-STD-810G | Meet the standard, not yet certified | NA | |
| Battery | UN38.3，MSDS,Air and shipping reports，IEC62133 | NA | |
| Reliability | |||
| Type | Details | Descriptions | Optional configuration |
| Product reliability | Falling height | from 120cm height to wooden floor with booting status | |
| Working temperature | ’－20℃～60℃ | ||
| Storage temperature | ’－40℃～70℃ | ||
| Humidity | Humidity: 95% Non-Condensing | ||
