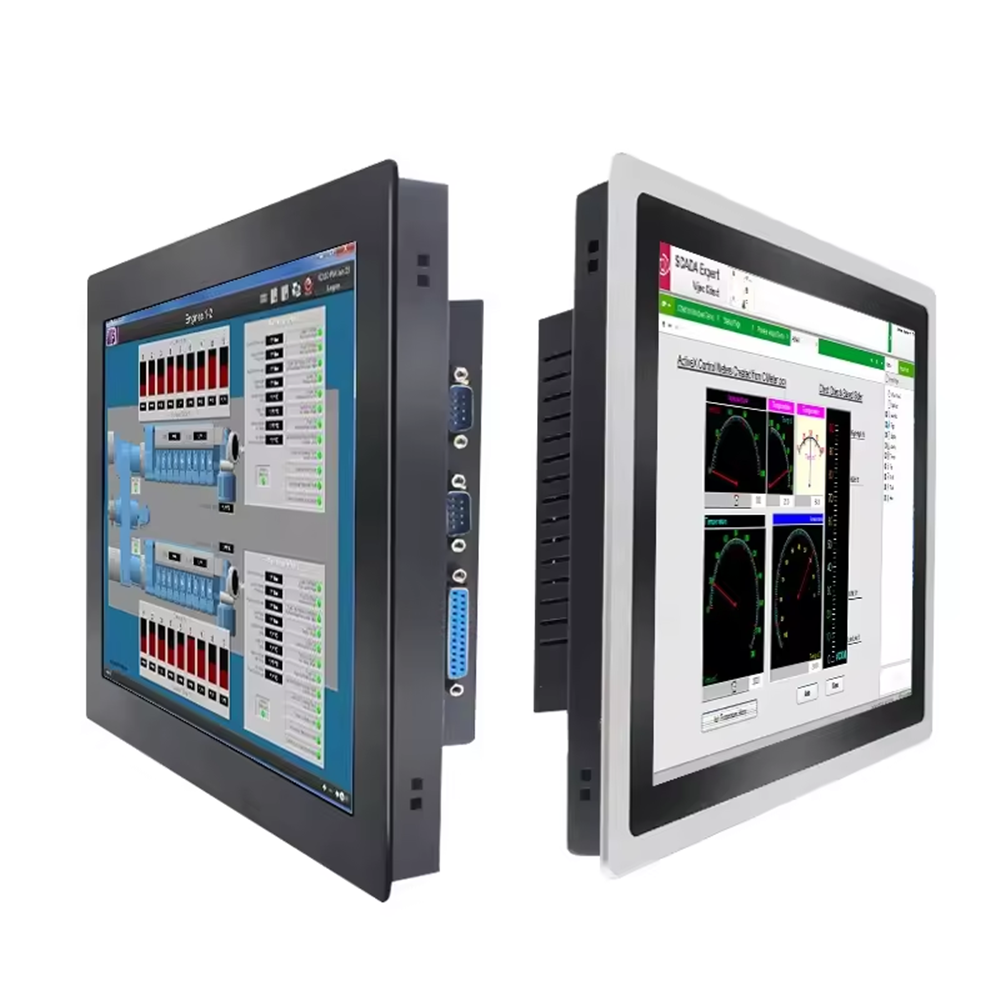

10.4” Windows All in one Industrial Panel PC
● 10.4 inch 4:3 square screen
● Industrial Touch screen display
● easy to embedded with snaps
● Support 7*24 hours uninterrupted operation
TOUCH INDUSTRIAL PANEL PC
POWERFUL PROCESSOR
STABLE PERFORMANCE
MULTIPLE APPLICATION
| Model No. | TPC-104J | |
| Chassis | Material/Structure | Aluminum case, fanless design |
| Color | Silver | |
| Dimension | 210.432×157.824 mm (H×V) | |
| Net Weight | 4KG | |
| Installation | VESA mount / embedded | |
| LCD Screen | Type | 10.4” LCD, wide screen |
| Resolution | 1024 * 768 | |
| Luminance | 450 cd/m2 | |
| Touch Screen | Type | Capacitive，10 point touch |
| Light Transmission | >86% | |
| Mainboard | CPU | Onboard Intel J6412/7300U/8260U/10710U/1135G7 quad core 4-thread processor, TDP 10W |
| Graphics | Integrated Intel® UHD Graphics | |
| Memory | 2*DDR4 SODIMM 2400MHz RAM slot, up to 32GB | |

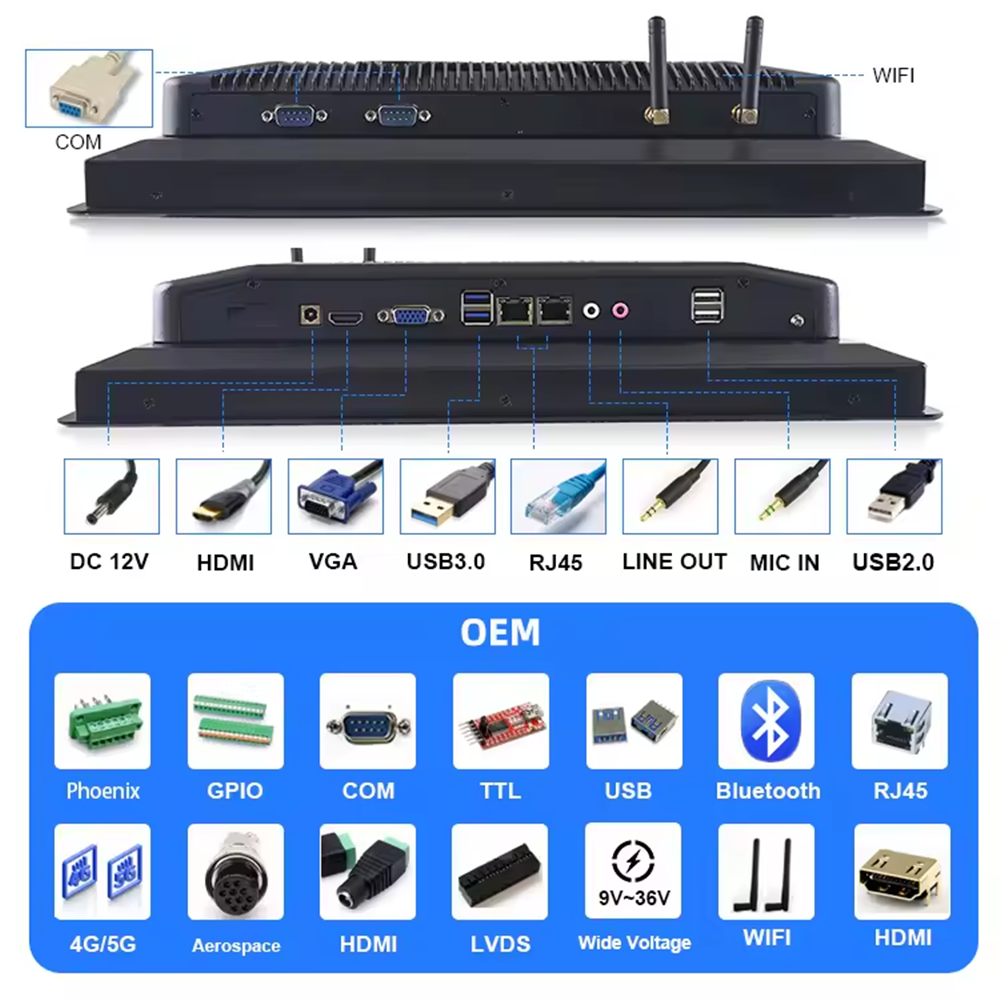

| IO Port | POWER | 1*Power button，1* One-key recovery，1*AC LOSS（auto power ON/OFF) |
| LED | 1*Power LED, 1* HDD LED | |
| Display | 1*HD OUTPUT | |
| LAN | 2*Intel I210 Gigabit Ethernet, support Wake On LAN、PXE | |
| USB | 4*USB3.0，2*USB2.0 | |
| COM | 6*RS232，COM1 DB9 RS232，COM2 DB9 RS232/485/422，COM3-6 RS232/485 on 2*10pin Phoenix connector，COM1-2 support pin9 charged function | |
| Phoenix Connector | 2*15Pin （4-in 4-out GPIO，power signal, COM3~6 (RS232/485)，5V VCC and GND) | |
| DIP switch | 10-digit dip switch for COM2~6 RS232/485/422 selection | |
| Audio | 1*Line out，1*MIC | |
| Power | 1*DC aviation port, 1*2Pin Phoenix connector, support DC9~36V voltage input | |
| Storage | SATA | 1*2.5”SATA port |
| M.2 | 1*M.2 SSD port，support Key-M，2280，NVME PCIEx4 SSD | |
| MSATA | 1*MSATA SSD port | |
| Expansion | M.2 | 1*M.2/WiFi，Key-E，2230，support WiFi module |
| 1*M.2/5G，Key-B，2242/52，support 5G module | ||
| OS Support | Windows | Windows 10 /11 |
| Linux | Ubuntu | |
| Watch Dog | Support hardware reset function (L256, 0~255 seconds) | |
| Power Supply | Power Type | External power supply |
| Voltage Input | 9V~36V | |
| Rate Consumption | 60W~180W | |
| Environment | Operating Temp. | -10℃～50℃ |
| Storage Temp. | -20℃～70℃ | |
| Relative Humidity | 5%-95% relative humidity, non-condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Display Size | 10.4 Inch |
|---|---|
| Operation System | Windows PS |
