Fan Cooling Win10 Pro Industrial Panel PC
- 10.4”Fan cooling Industrial Panel PC
- Processor：Intel CeleronJ6412 ( I3/I5/I7 can be optional)
- RAM:4G ( 8G/16G can be optional )
- Storage:128SSD Storage ( 256G SSD/ 512GSSD/1TB SSD can be optional )
- OS:Windows 10Pro ( Windows 11 IOT/windows 10 Pro can be optional)
- Installation: Embedded/ Wall Mounting/ Desktop
- Product color: Black

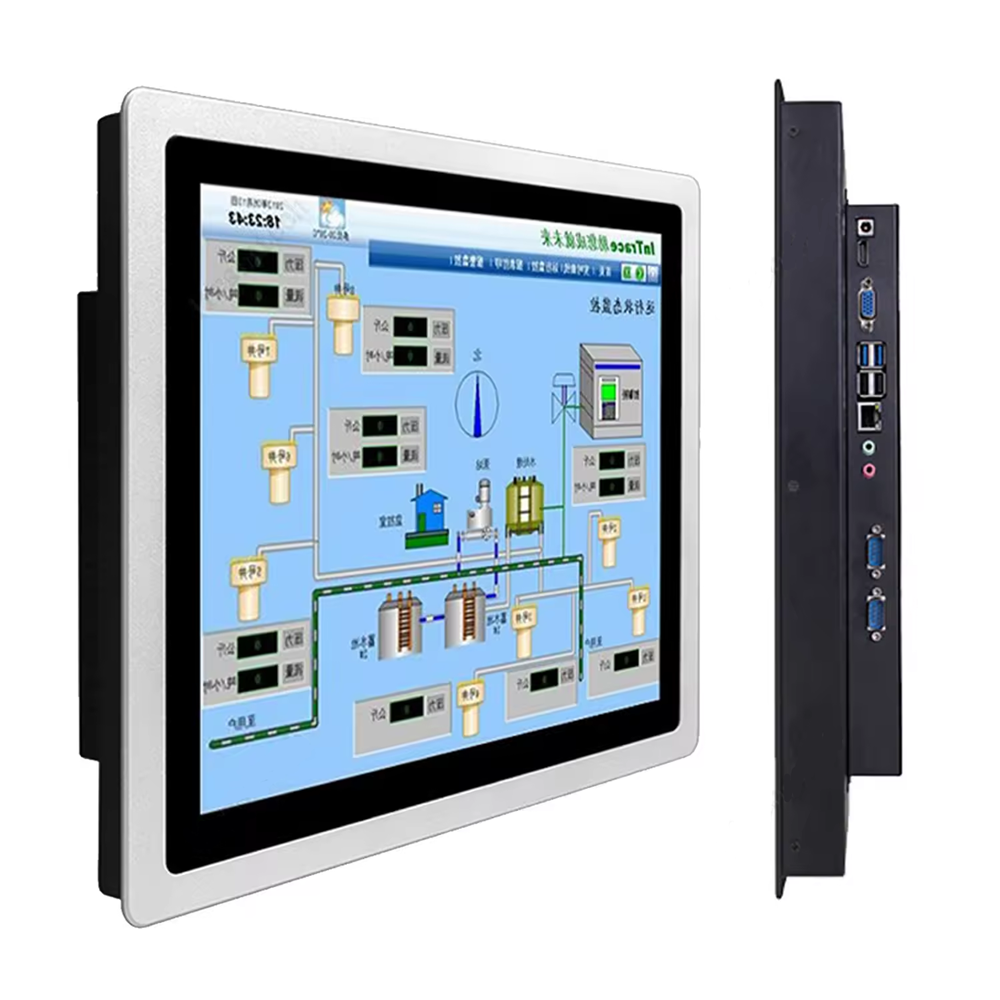

Fan cooling Industrial Panel PC

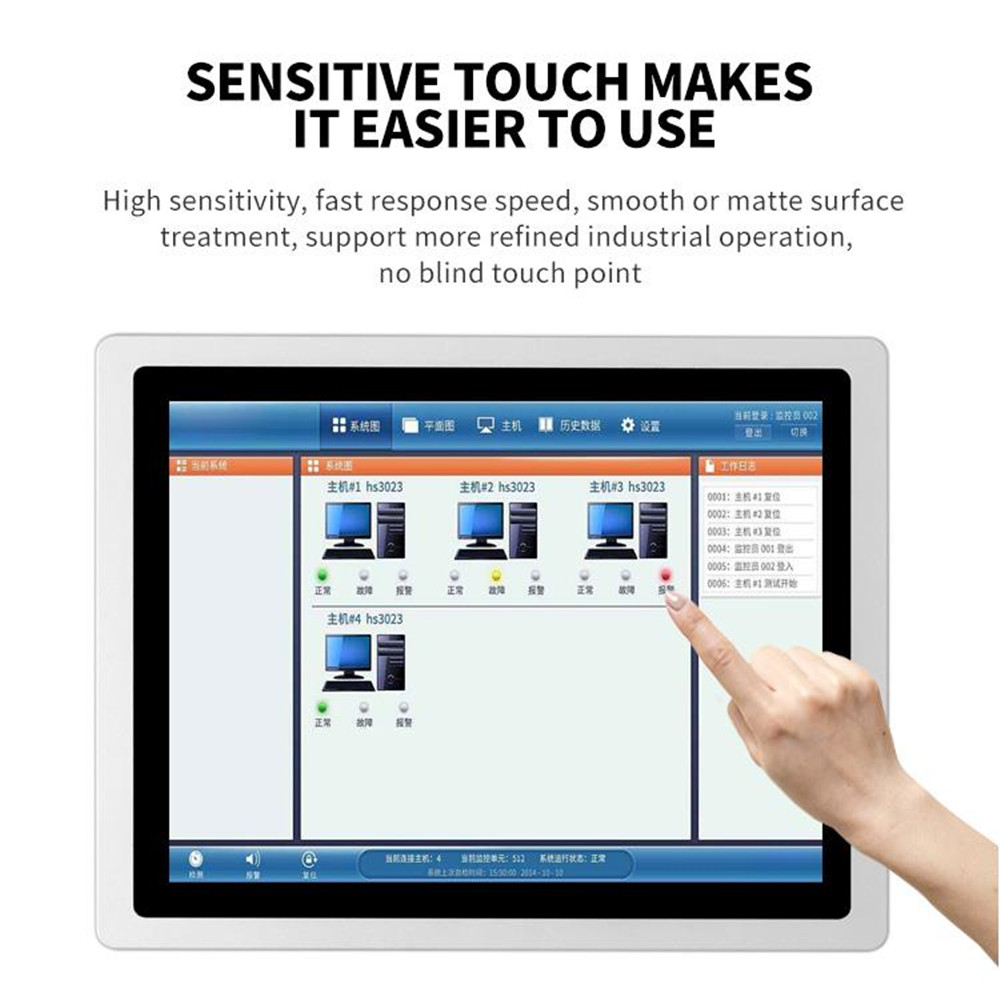

TOUCH INDUSTRIAL PANEL PC —10.4 inch industrial grade, 10 Point Capacitive G+G touch screen. Compact, fully functional,
all the power and functionality of a desktop computer in all in one design, ideal for industrial and commercial applications.
SILENCE & EFFICIENT HEAT DISSIPATION DESIGN–The back cover adopts high strength aluminum material, which has good heat dissipation. Portable Industrial pc also has good anti-interference, high and low temperature resistance, dust-proof, anti-vibration,etc
POWERFUL PROCESSOR—Industrial panel PC uses high performance and low power consumption processor.
STABLE PERFORMANCE–Industrial panel PC is designed, tested and manufactured in strict accordance with the reliability and stability standards of industrial products. Support 7 * 24-hour uninterrupted operation.
MULTIPLE APPLICATION—Embedded Industrial Panel PC can be applied to a variety of scenarios, such as production line management, industrial workshop, equipment control system, security management system, intelligent manufacturing management, advertising information playback, catering order cashier, network monitoring management and etc.
| Model No. | TPC-104J | |
| Chassis | Material/Structure | Aluminum case, fan cooling design |
| Color | Silver/Black | |
| Dimension | 337.92(W)×270.336(H) mm | |
| Net Weight | 6.5 KG | |
| Installation | VESA mount / embedded | |
| LCD Screen | Type | 17” LCD, wide screen |
| Resolution | 1280 ×1024 | |
| Luminance | 700-1000 cd/m2 | |

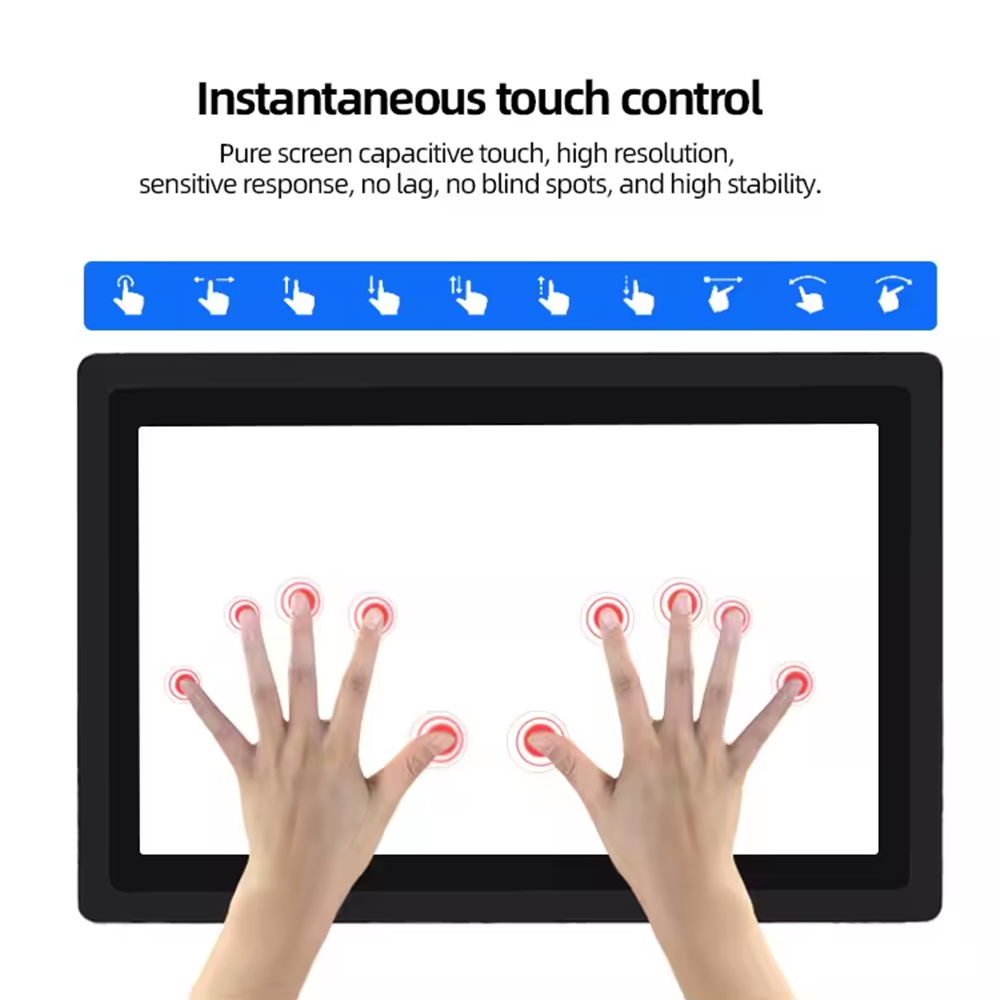

| Touch Screen | Type | Capacitive，10 point touch |
| Light Transmission | >86% | |
| Mainboard | CPU | Onboard Intel J6412/7300U/8260U/10710U/1135G7 quad core 4-thread processor, TDP 10W |
| Graphics | Integrated Intel® UHD Graphics | |
| Memory | 2*DDR4 SODIMM 2400MHz RAM slot, up to 32GB | |
| IO Port | POWER | 1*Power button，1* One-key recovery，1*AC LOSS（auto power ON/OFF) |
| LED | 1*Power LED, 1* HDD LED | |
| Display | 1*HD OUTPUT | |
| LAN | 2*Intel I210 Gigabit Ethernet, support Wake On LAN、PXE | |
| USB | 4*USB3.0，2*USB2.0 | |
| COM | 6*RS232，COM1 DB9 RS232，COM2 DB9 RS232/485/422，COM3-6 RS232/485 on 2*10pin Phoenix connector，COM1-2 support pin9 charged function | |
| Phoenix Connector | 2*15Pin （4-in 4-out GPIO，power signal, COM3~6 (RS232/485)，5V VCC and GND) | |
| DIP switch | 10-digit dip switch for COM2~6 RS232/485/422 selection | |
| Audio | 1*Line out，1*MIC | |
| Power | 1*DC aviation port, 1*2Pin Phoenix connector, support DC9~36V voltage input | |
| Storage | SATA | 1*2.5”SATA port |
| M.2 | 1*M.2 SSD port，support Key-M，2280，NVME PCIEx4 SSD | |
| MSATA | 1*MSATA SSD port | |
| Expansion | M.2 | 1*M.2/WiFi，Key-E，2230，support WiFi module |
| 1*M.2/5G，Key-B，2242/52，support 5G module | ||
| OS Support | Windows | Windows 10 /11 |
| Linux | Ubuntu | |
| Watch Dog | Support hardware reset function (L256, 0~255 seconds) | |
| Power Supply | Power Type | External power supply |
| Voltage Input | 9V~36V | |
| Rate Consumption | 60W~180W | |
| Environment | Operating Temp. | -10℃～50℃ |
| Storage Temp. | -20℃～70℃ | |
| Relative Humidity | 5%-95% relative humidity, non-condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
